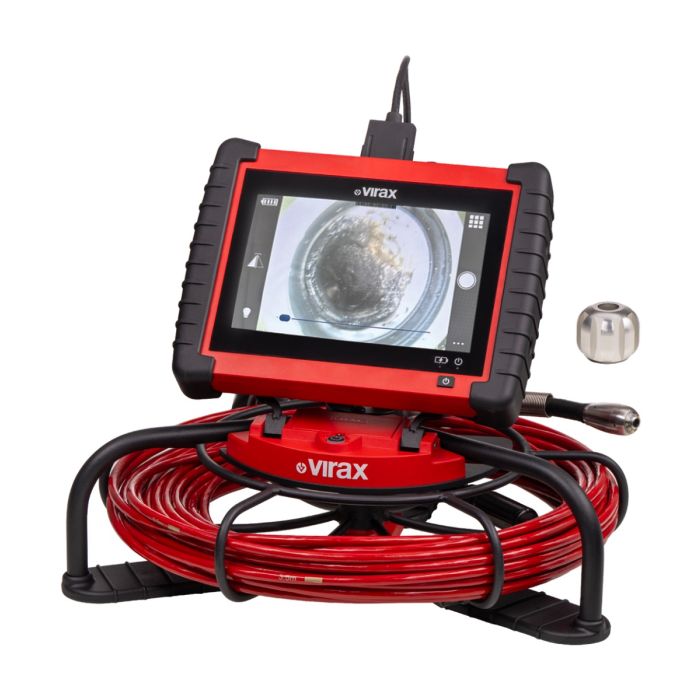

2941 : Mini Visioval® VX Inspection camera
Ideal for inspecting small diameters (from Ø 40 mm)
Passage through 90° bends in Ø 40 mm PVC drain pipes
Precise and easy-to-observe inspection thanks to image self-leveling
Compact inspection camera with HD head Ø 20 mm and 22 m of graduated cable on a reel for vertical or horizontal inspections of pipes from Ø 40 mm in PVC drainage pipes, exhaust, ventilation or smoke ducts, false ceilings, industrial installations, various cavities…
1080p HD Color Camera Head:
Ø 20 mm head for inspecting pipes from 40 to 125 mm in diameter, allowing passage through 90° bends in Ø 40 mm PVC drain pipes.
Operates in wet environments thanks to its IP69 rating, allowing immersion up to 1 meter deep for 30 minutes.
Maintains a usable image at all times thanks to self-leveling.
Precisely identify defects (cracks, blockages, deposits) with 1080p HD (2 MP) color quality, adjustable LED lighting, and a 75° field of view for clear images even in dark areas.
Integrated 512 Hz transmitter for precise positioning of the head within the pipe (requires 2 AAA batteries and a compatible locator).
7" (18 cm) Color LCD Touchscreen:
Work comfortably in all conditions, even outdoors, thanks to a high-brightness (1000 nits) 7" LCD screen with a high resolution of 1280 x 800 pixels.
Capacitive touchscreen for improved responsiveness and precision (multi-touch).
Tiltable screen for better visibility and detachable at only 1 kg.
IP54 certified for protection against dust and water splashes, and SoftTouch side protection for optimal grip and effective shock resistance.
Power / Battery Life:
Battery life displayed on the screen, up to 4 hours (integrated Li-Ion battery).
Operates on mains power or batteries.
Charging indicator.
Photo/Video Recording:
Up to 2 hours of video recording and 10,000 photos thanks to the included 2GB MicroSD card.
Playback / Fast Forward and Rewind / Pause / Delete photos or videos from the integrated gallery.
USB/MicroSD port for transferring photos or videos to a PC.
Compact and lightweight, delivered in a Virabox (only 3.6 kg).
Versatile camera thanks to its various accessories: 2 optional heads with dual cameras for front or side viewing, in 720p HD resolution (1 MP) with integrated LEDs:
- For inspecting drinking water supply pipes or ventilation ducts with a diameter > 10 mm: additional camera Ø 8.5 mm / length 5 m head (ref. 294161)
- For inspecting tile joints/spacers, air conditioning pipes with a diameter > 5 mm: additional camera Ø 3.8 mm / length 3 m head (ref. 294162)
| Sku | Description | Ø camera head | L cable m | Pipe Ø mm | Autonomy | Possibility of localisation | Compatibility | kg |
|---|---|---|---|---|---|---|---|---|
| 294160 |
Mini Visioval® VX |
20 |
22 |
40 - 125 |
4h |
Yes |
8,168 |
|
| 294161 |
Ø 8,5mm head for MINI VISIOVAL® VX |
8,5 |
5 |
> 10 mm |
No |
294160 - 754382 |
0,472 |
|
| 294162 |
Ø 3,8mm head for MINI VISIOVAL® VX |
3,8 |
3 |
> 5 mm |
No |
294160 - 754382 |
0,200 |
|
| 754381 |
Screen for MINI VISIOVAL® VX |
- |
- |
- |
4h |
- |
294160 - 294161 - 294162 - 754382 |
1 |
| 754382 |
Ø 20mm head on 22m reel for MINI VISIOVAL® VX |
20 |
22 |
40 - 125 mm |
Yes |
294160 - 754382 |
3,6 |
|
| 754383 |
50mm guide ball for MINI VISIOVAL® VX |
- |
- |
- |
- |
- |
294160 - 754382 |
0,9 |
| Capacity | Ø 20 mm camera head: for Ø 40 to 125 mm pipes. Allows passage through 90° bends in Ø 40 mm PVC drainage pipes. |
|---|---|
| Tips | - Specific guide ball for pipes Ø > 55 mm |
| Supplied with | Mini Visioval® VX camera with : |
