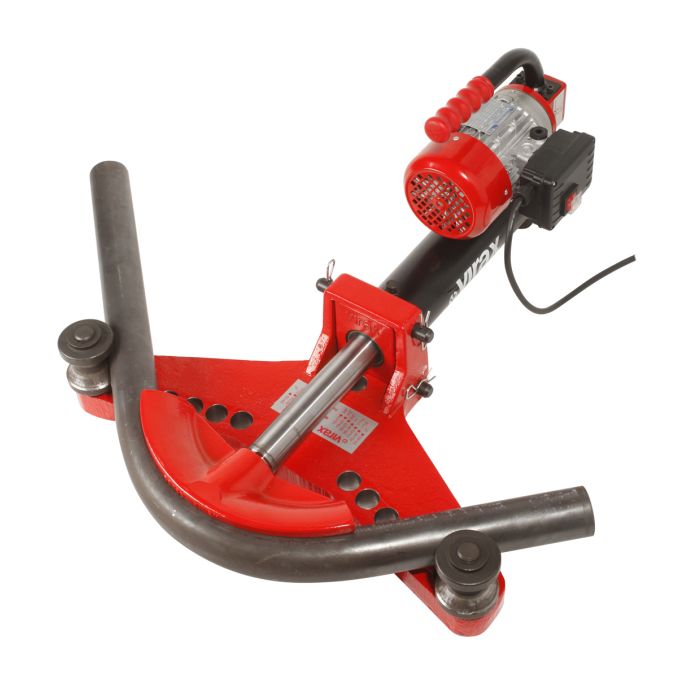

2408 : Powered Hydraulic Bender

The + product

Bending capacity:
Gas pipes
: Ø 3/8” to 4” (nfa 49115 - en 10255).
Locksmith’s pipes
: Ø 12 à 45 mm.
Bending angle: 0° to 90°.

For medium and heavy series gas pipes...
More details
SKU : 30327

For medium and heavy series gas pipes.

Electrical hydraulic bender for worksites or prefabrication.

Simple action circuit with spring-loaded piston return.

Supplied in a wooden case with the forms and accessories.

Less effort required for large batches.

Limit switch (option - ref. 240811) to reproduce identical bends.

To identify the different types of cheeks, see next pages.



Tip:

- Use Virax hydraulic ram oil for best protection.

- All necessary precautions must be taken when filling the ram to avoid foreign matter entering the reservoir as this may impair operation.

- Use horizontally.



Ref. 240851, Ref. 240852 delivered in two wooden chests

Grouped product items
Sku Formers For pipe Type Ram kg
240842

3/8 - 1/2 - 3/4 - 1 - 1.1/4 - 1.1/2 - 2"

Steel

Open Cheeks

230 V - n° 2

93,000

240843

3/8 - 1/2 - 3/4 - 1 - 1.1/4 - 1.1/2 - 2"

Steel

Sliding Cheeks

230 V - n° 2

87,000

240851

3/8 - 1/2 - 3/4 - 1 - 1.1/4 - 1.1/2 - 2 - 2.1/2 - 3 - 3.1/2 - 4"

Steel

Hinged Cheeks

230 V - n° 3

303,000

240852

3/8 - 1/2 - 3/4 - 1 - 1.1/4 - 1.1/2 - 2 - 2.1/2 - 3"

Steel

Hinged Cheeks

230 V - n° 3

188,000
