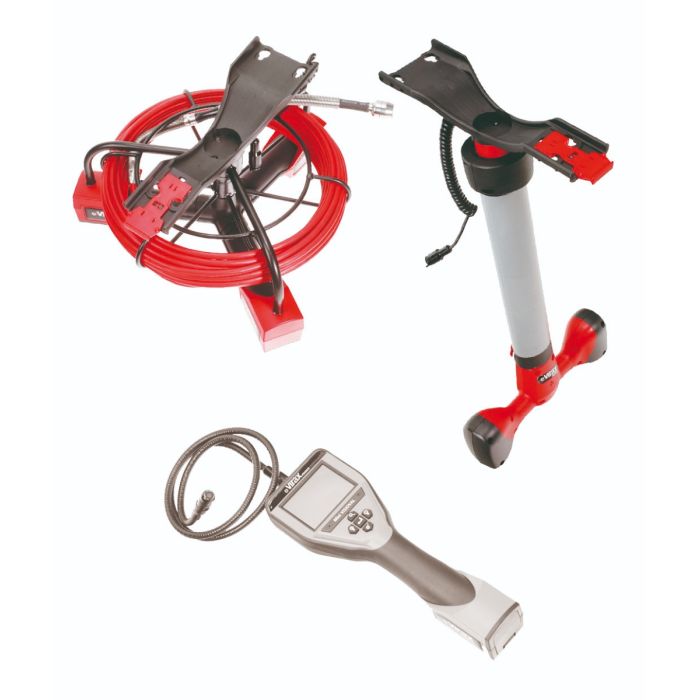

2941: Accessories for Colour Digital Inspection Mini Camera Visioval®

To be used with the Mini Visioval® ref. 294110.

Cable 16 m (ref. 294121):
Head Ø 25 mm to inspect the Ø 40 - 100 mm / 1.1/2" - 4" up to 16 metres distance (can negotiate 90° bends in 50 mm internal diameter pipes)
4 built-in LEDs (power 125 Lux).
Head fitted with a 512 Hz transmitter to be detected by the Virax localizer ref. 294130.
Other characteristics of the head equivalent to those of the Mini Visioval® ref. 294110.
Cable in turret open with guide for easy storage an cleaning. Base with anti-slip and anti-scratch rubber pads.
Supplied with 2 AA batteries to supply the 512 Hz transmitter.

Locator (ref. 294130):
Used to find the exact position of the 512 Hz transmitter of the Mini Visioval® 16 m cable head.
Localisation up to 2.45 m deep.
Easy and intuitive search with direction display on 3.5" screen of the Mini Visioval® and sound indications.
Two search models:
- A geolocalisation mode to find and move above the probe.
- A depth mode to determine the distance between the probe and the locator.
Also allows to detect the 640 Hz, 33 Khz active, 50/60 Hz passive frequencies.
Telescopic design for easy storage.
Operates only with the Mini Visioval® camera (ref. 294110) associated with the 16 m cable (ref. 294121).
Supplied in a plastic shock-proof case.
